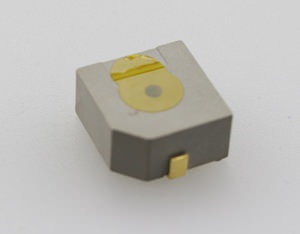

CX1313065-47R(5V)-2400-F
| 型號： | SMD BUZZER |
| 規格： | 13*13*6.5mm,5Vo-p,Freq.:2400Hz |

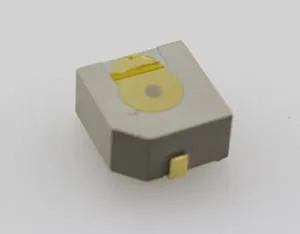

| 描述： | SMD BUZZER External Drive Magnetic Buzzer mini buzzer 蜂鳴器 |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 2400 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 3~7 |  |
| 3 | Rated Voltage | Vo-p | 5 | |
| 4 | Current Consumption | mA | MAX. 40 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 47±5 | ||
| 7 | Weight (MAX) | gram | ||
| 8 | Housing Material | PPS( Gary ) |

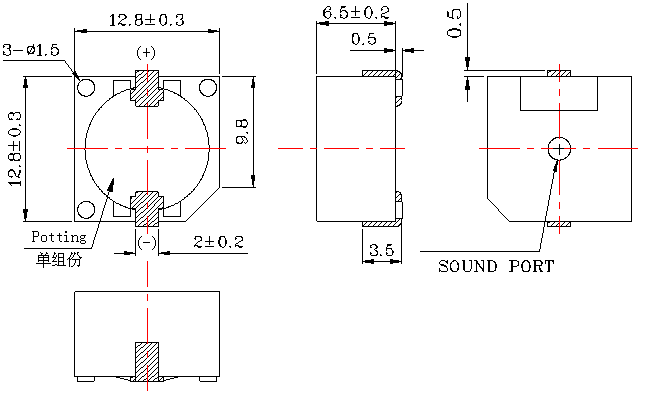

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
