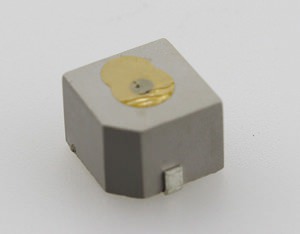

CX1313100-47R(5V)-2400-F
型號: SMD BUZZER
規格: 13*13*10mm,5Vo-p,Freq.: 2400Hz
描述: SMD BUZZER External Drive Magnetic Buzzer mini buzzer 蜂鳴器
No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2400 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 3~7
3 Rated    Voltage Vo-p 5
4 Current    Consumption mA MAX. 50 at    Rated Voltage

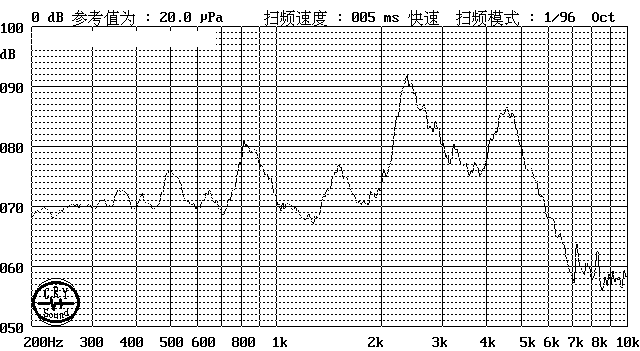

5 Sound Pressure Level dB MIN. 85 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   47±5
7 Weight (MAX) gram
8 Housing Material   PPS( Gary )

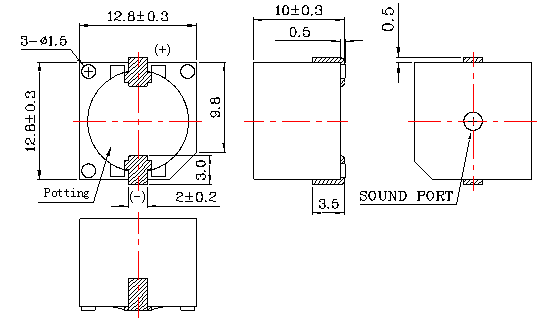

Unit :mm  Tol: ±0.5
