CX9040S-16R(3.6V)-2700-F
| 型號： | SMD BUZZER |
| 規格： | OD9.0*4.0,3.6Vo-p,Freq.: 2700Hz |
| 描述： | SMD BUZZER External Drive Magnetic Buzzer mini buzzer 蜂鳴器 |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 2700 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 3~7 |  |
| 3 | Rated Voltage | Vo-p | 3.6 | |
| 4 | Current Consumption | mA | MAX. 100 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 16±3 | ||
| 7 | Weight (MAX) | gram | ||
| 8 | Housing Material | PPS ( Black ) |

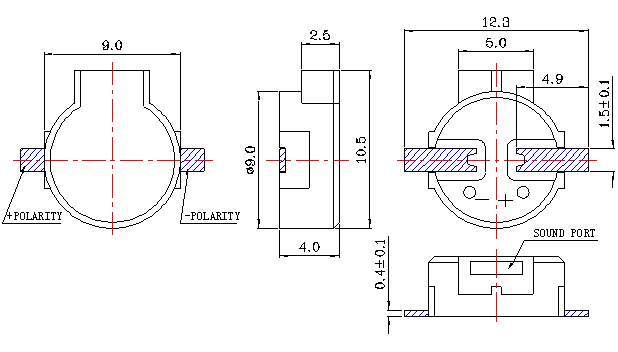

Unit :mm Tol: ±0.5
