CX6635-5.5R(1.5V)-2731-F

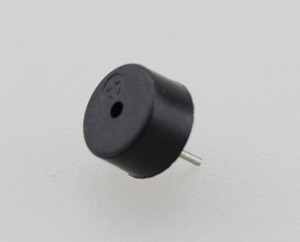

| 型號： | Magnetic Buzzer他激式蜂鳴器 |
| 規格： | OD6.7*3.7mm,1.5Vo-p,2731Hz |
| 描述： | BUZZER DIP BUZZER EXTERNAL DRIVE MAGNETIC BUZZER |
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | Hz | 2731 | Vo-p=1/2duty , square wave | |
| 2 | Operating Voltage | Vo-p | 1 ~ 2 | 4 ~ 7 |  |
| 3 | Rated Voltage | Vo-p | 1.5 | 5 | |
| 4 | Current Consumption | mA | MAX.80 | MAX.100 | at Rated Voltage |

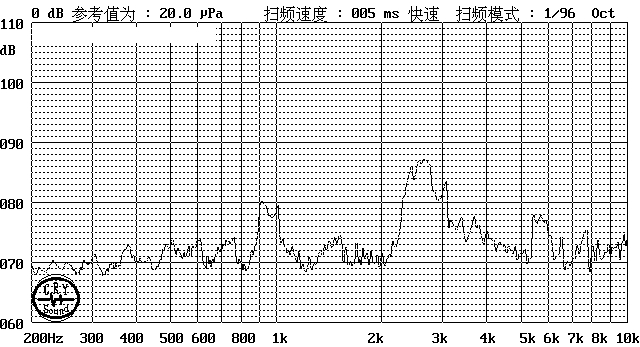

| 5 | Sound Pressure Level | dB | MIN. 70 | MIN. 80 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 5.5±1 | 32±4 | ||
| 7 | Weight (MAX) | gram | 0.8 | ||
| 8 | Housing Material | PPO | |||
Unit :mm Tol: ±0.5
