CX12060S
| 型號： | Magnetic Buzzer他激式蜂鳴器 |
| 規格： | OD12*6.0mm,1.5Vo-p,Freq.:2731Hz |

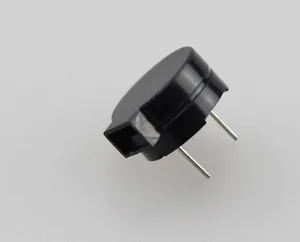

| 描述： | BUZZER,External Drive Magnetic Buzzer |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 2731 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 1~ 2 |  |
| 3 | Rated Voltage | Vo-p | 1.5 | |
| 4 | Current Consumption | mA | MAX. 70 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 6.5±1 | ||
| 7 | Weight (MAX) | gram | 1 | |
| 8 | Housing Material | PPO( Black ) |
Unit :mm Tol: ±0.5
