CX12075S
型號: Magnetic Buzzer他激式蜂鳴器
規格: OD12*7.5mm,1.5Vo-p,Freq.:2731Hz
描述: BUZZER, External Drive Magnetic Buzzer

A. SCOPE

 This specification applies magnetic buzzer CX12075S-16R(3V)-2731-F
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 2731 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 2~ 4
3 Rated    Voltage Vo-p 3
4 Current    Consumption mA MAX. 70 at    Rated Voltage
5 Sound Pressure Level dB MIN. 88 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   16±3
7 Weight (MAX) gram 1
8 Housing Material   PPO Black )

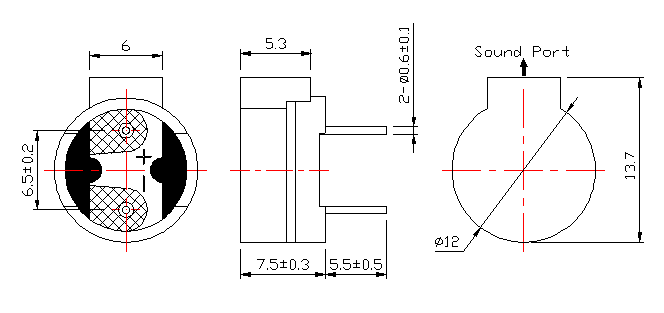

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
