CX25125
| 型號： | Magnetic Buzzer他激式蜂鳴器 |
| 規格： | OK25*12.5mm,12Vo-p,Freq.:800Hz |

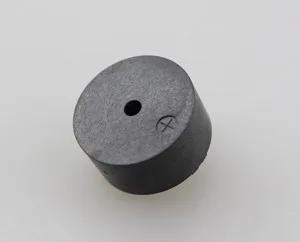

| 描述： | BUZZER, External Drive Magnetic Buzzer |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 800 | Vo-p=1/2duty , square wave |
| 2 | Operating Voltage | Vo-p | 9~ 15 |  |
| 3 | Rated Voltage | Vo-p | 12 | |
| 4 | Current Consumption | mA | MAX. 60 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 85 | at 10cm at Rated Voltage |
| 6 | Coil Resistance (Ω) | 115±12 | ||
| 7 | Weight (MAX) | gram | ||
| 8 | Housing Material | PPO（black ) |

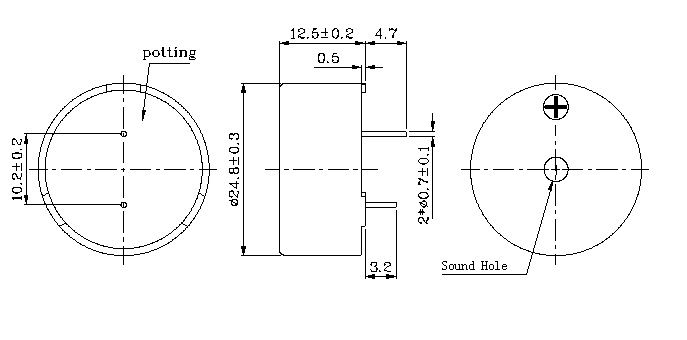

Unit :mm Tol: ±0.5
