CXP1414070C
| 型號： | SMD BUZZER |
| 規格： | 14*14*7.0mm,5VDC,Freq.:4KHz |
| 描述： | SMD BUZZER, Self Drive Piezo Buzzer |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | Hz | 4000±500 | square wave | |
| 2 | Operating Voltage | Vdc | 2 ~8 | 3 ~16 | |
| 3 | Rated Voltage | Vdc | 5 | 12 | |
| 4 | Current Consumption | mA | MAX. 8 | MAX. 8 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 83 | MIN. 85 | At10cm at Rated Voltage |
| 6 | Housing Material | LCP ( Black ) | |||

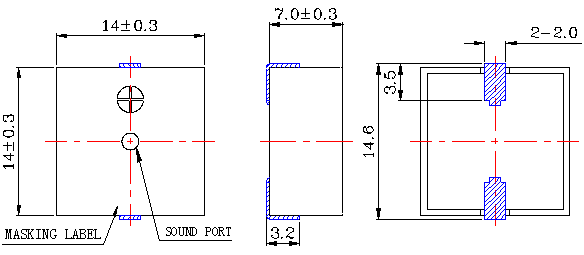

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
