CXP30095C-W
| 型號： | 壓電式蜂鳴器 |
| 規格： | OD30*9.5mm,24VDC,Freq.:3.5KHz |
| 描述： | PIEZO BUZZER,Self Drive Piezo Buzzer蜂鳴器 |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | Hz | 3500±500 | square wave |
| 2 | Operating Voltage | Vdc | 3 ~20 | |
| 3 | Rated Voltage | Vdc | 24 | |
| 4 | Current Consumption | mA | MAX. 20 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 80 | at 30cm at Rated Voltage |
| 6 | Housing Material | ABS ( Black ) |

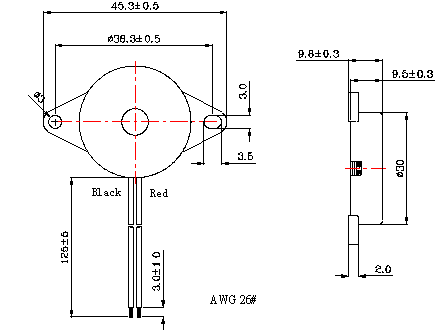

C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
