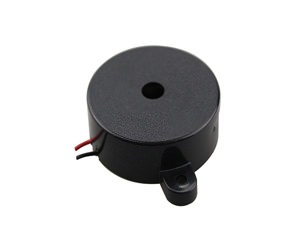

CXP30240C-W
| 型號： | 壓電式蜂鳴器 |
| 規格： | OD30*24mm,12VDC,Freq.:3.5KHz |
| 描述： | PIEZO BUZZER,Self Drive Piezo Buzzer蜂鳴器 |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
| No. | Item | Unit | Specification | Condition | |
| 1 | Oscillation Frequency | Hz | 3500±500 | square wave | |
| 2 | Operating Voltage | Vdc | 3 ~28 | 3 ~28 | |
| 3 | Rated Voltage | Vdc | 12 | 24 | |
| 4 | Current Consumption | mA | MAX.15 | MAX.15 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 95 | MIN. 100 | at 10cm at Rated Voltage |
| 6 | Housing Material | ABS ( Black ) | |||

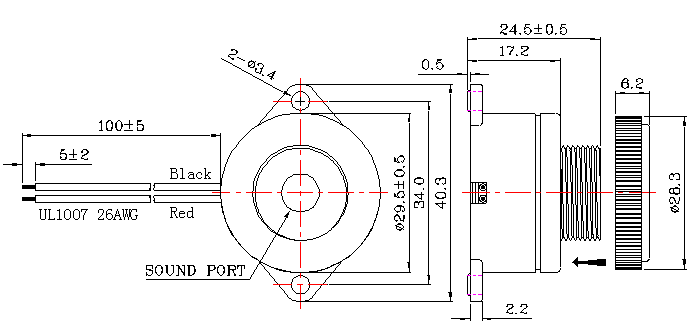

Unit :mm Tol: ±0.5
